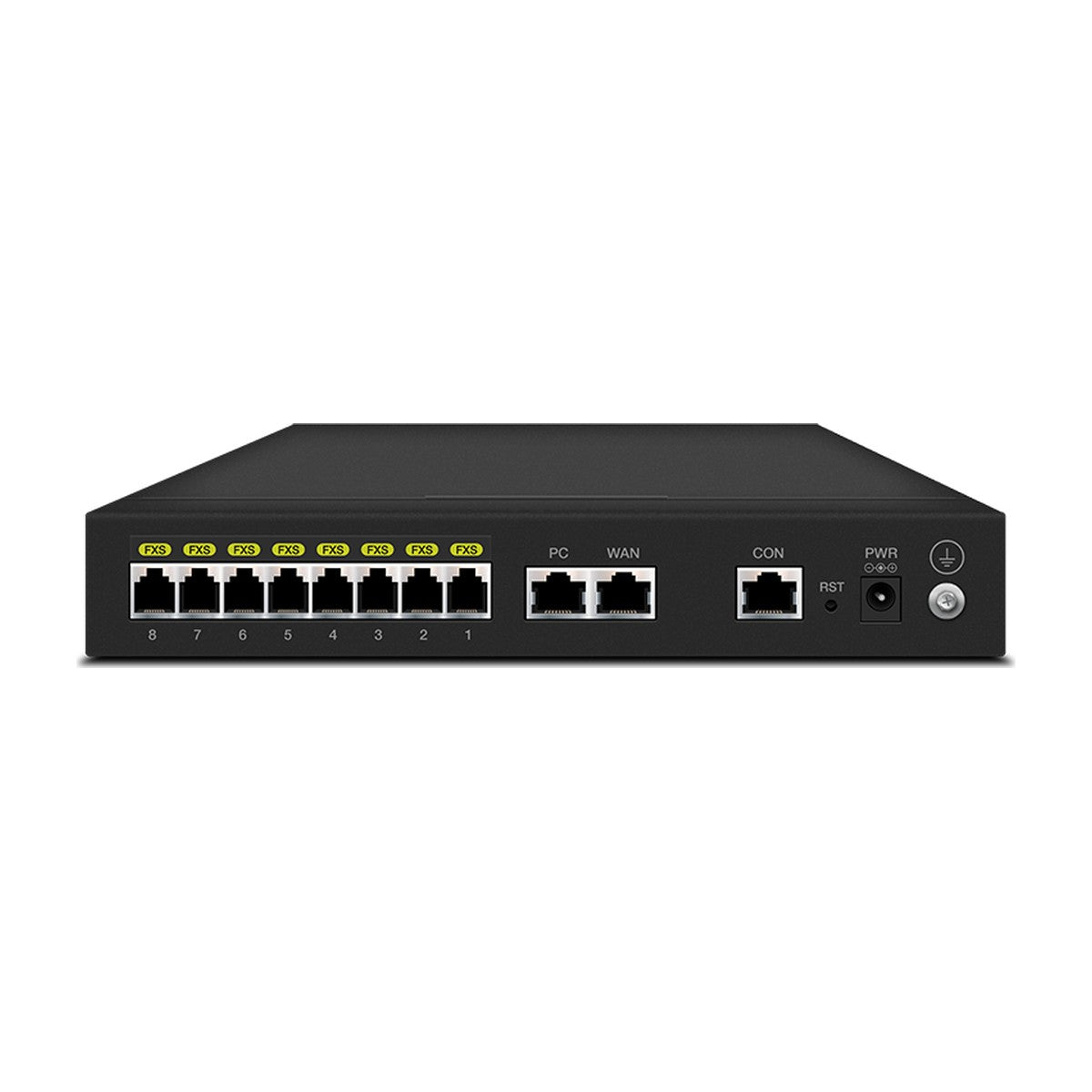

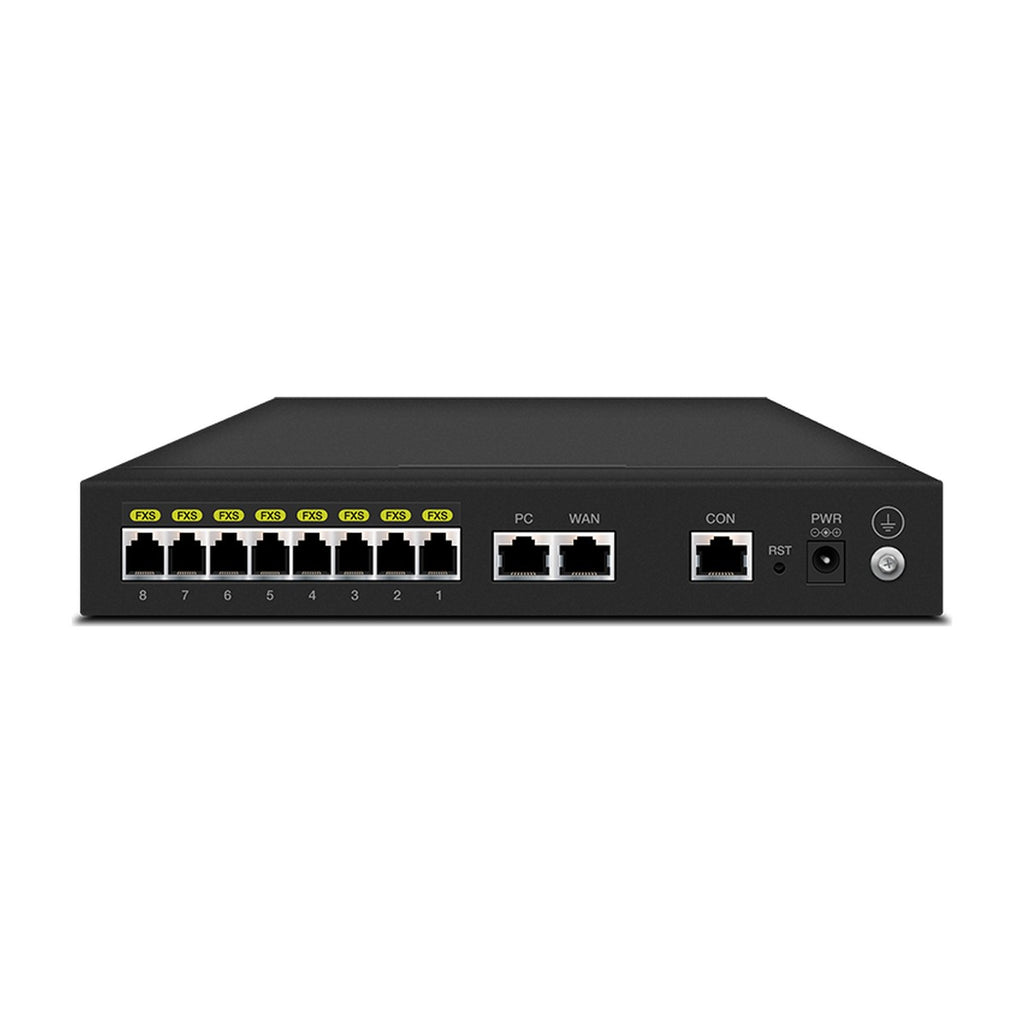

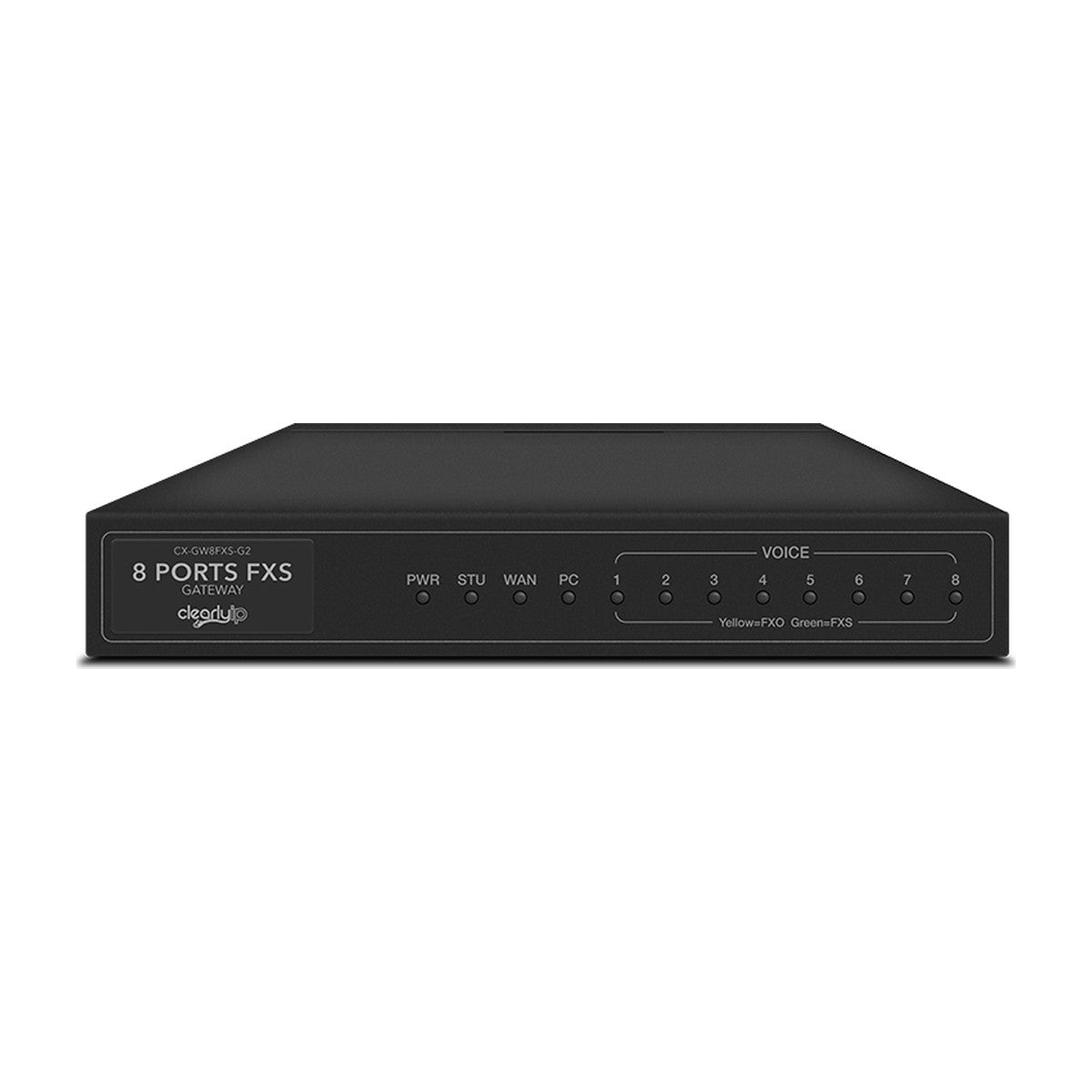

ClearlyIP 8-Port FXS G2 Analog Gateway
ClearlyIP 8-Port FXS G2 Analog Gateway
The ClearlyIP 8 Port FXS G2 connects up to eight analog phones, fax machines, door phones or paging amplifiers to your VoIP phone system. It handles eight calls at once, one per port.
ClearlyIP builds the hardware in our Crosstalk PBX appliances, and its gateways are tested with FreePBX. They manage through a web GUI or ClearlyIP's ComXchange Gateway Provisioning Module.
Quick guide to the two port types: an FXS port provides dial tone, so you plug in an analog phone, fax machine, door phone or overhead paging amplifier. An FXO port takes dial tone, so you plug in an analog phone line from the phone company. Our Crosstalk PBX appliances are pure VoIP with no analog ports, so an ATA or gateway is how you bring analog devices or phone lines onto the system.
Specifications
| Phone ports (FXS) | 8x FXS |
|---|---|
| Phone line ports (FXO) | None |
| Concurrent calls | 8 |
| Network | 1x WAN + 1x PC, 10/100/1000Mbps |
| Fax | T.38 or G.711 pass-through, up to 33,600 bps |
| Codecs | G.711, G.722, G.722.2, G.729a |
| Security | TLS, SRTP, brute-force login protection, firewall, SIP IP allow list |
| VPN client | OpenVPN, L2TP |
| Protection | Class I lightning protection |
| Power | 12V/1.5A, 12W |
| Dimensions | 228 x 135.5 x 35 mm |
| Weight | 0.825 kg |
| Mounting | Desktop |
| Operating temperature | 32-104°F (0-40°C) |
| Manufacturer part # | CX-GW8FXS-G2 |
Good to know
- FXS only. For analog phone lines from the phone company, use the ClearlyIP 8 Port FXO or the 4 FXS / 4 FXO gateway.
- Fax over VoIP works best when your SIP provider supports T.38. Test your fax machine on the line before you rely on it.
Frequently asked questions
How many analog devices can the ClearlyIP 8 Port FXS connect?
Eight, with up to eight calls at the same time.
What warranty comes with it?
A 2-year hardware warranty. The extended warranty option adds 3 years, for 5 years total.
Warranty and support
ClearlyIP gateways include a 2-year hardware warranty. The extended warranty option adds 3 years, for 5 years of total coverage. We handle warranty claims with ClearlyIP for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
