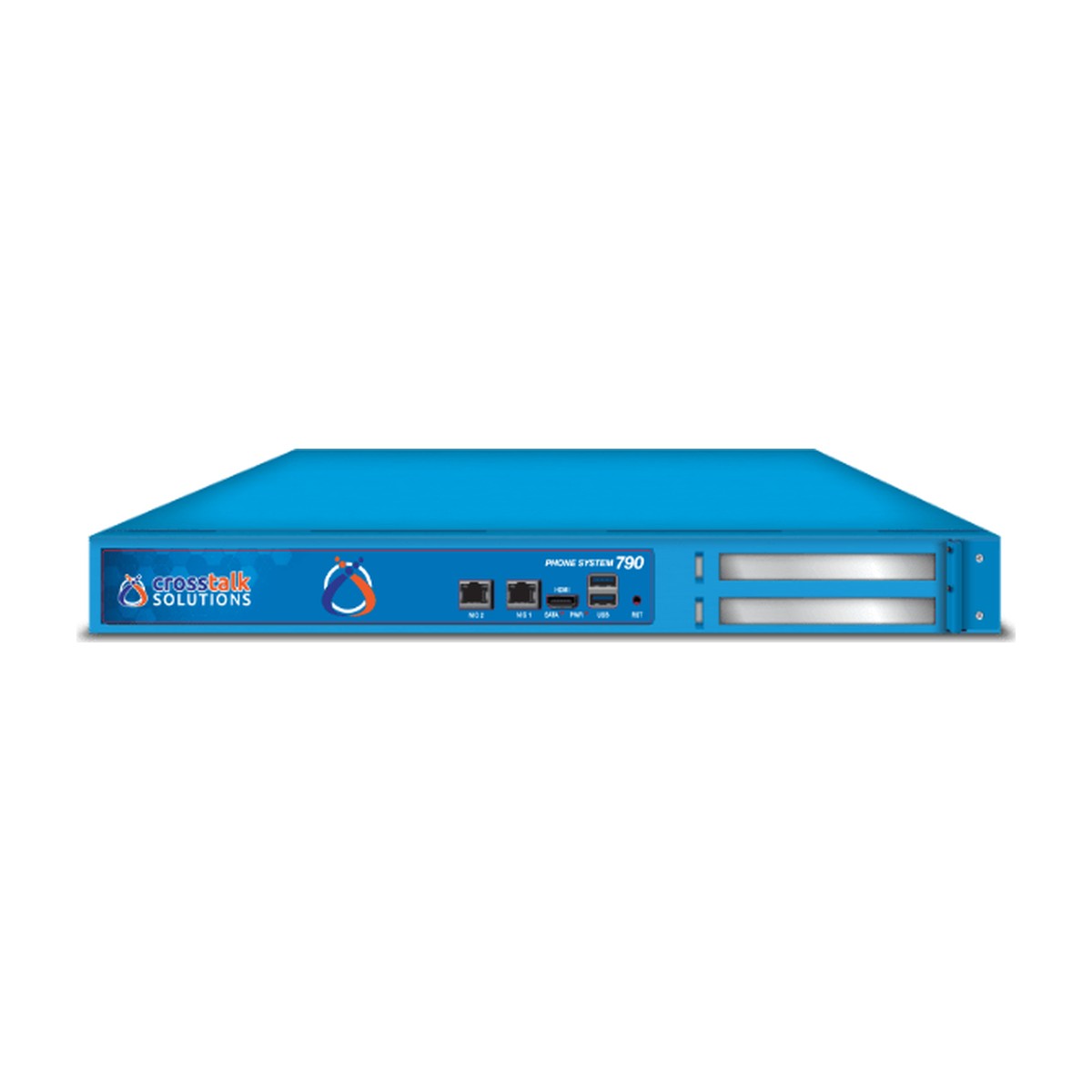

Crosstalk 790 PBX Appliance
Crosstalk 790 PBX Appliance
The Crosstalk 790 is the top of the lineup, built for large organizations and contact centers. It runs FreePBX on an Intel i7 with 32GB of RAM and handles up to 2,000 extensions and 350 concurrent calls.
Redundancy is the point of this box. Dual SSDs and dual internal power supplies mean a single failed drive or power supply doesn't take the phone system down. ClearlyIP tested the 790 at full capacity while using less than half of its system resources.
Like the rest of the lineup, the 790 has no built-in analog ports. For analog or T1/PRI connectivity, add a card in one of the PCIe slots or use an external gateway.
Specifications
| Processor | Intel i7 quad-core |
|---|---|
| Memory | 32GB |
| Storage | 2x 500GB SSD |
| Power | Dual internal power supplies, 100-240V |
| Network | 3x Gigabit Ethernet |
| Ports | 2x USB, 1x HDMI |
| Expansion | 2x PCIe slots |
| Capacity | Up to 2,000 extensions, 350 concurrent calls |
| Form factor | 1U rack mount, 13.25" D x 17.125" W x 1.75" H |
| Weight | 8.65 lb |
| Software | FreePBX pre-installed |
Warranty and support
Every Crosstalk appliance includes a 2-year hardware warranty. Warranty returns are handled by ClearlyIP, which builds the hardware. The extended warranty option adds 3 years, for 5 years of total coverage. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
