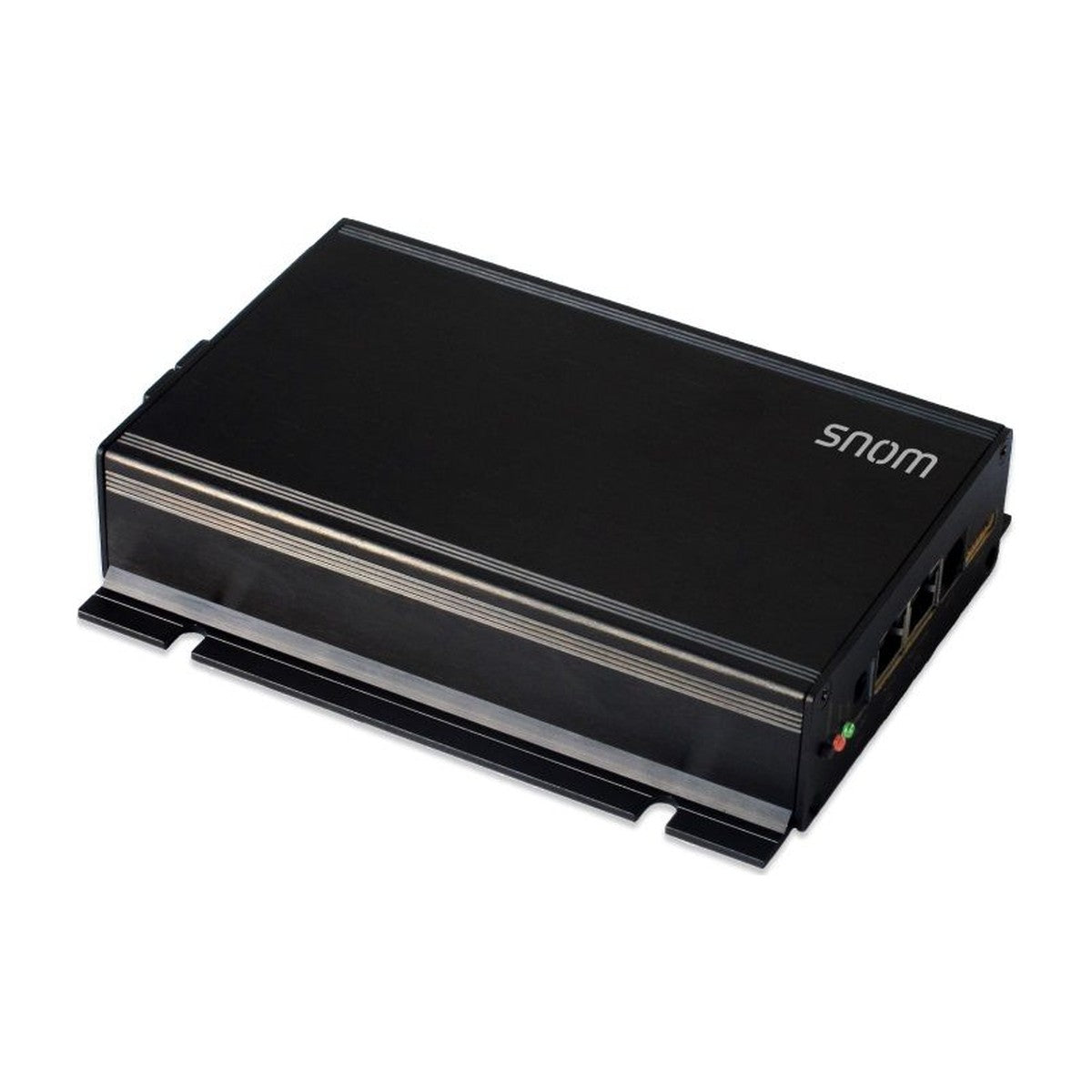

Snom PA1+ SIP Paging Amplifier
Snom PA1+ SIP Paging Amplifier
The Snom PA1+ is the lowest-cost way to add overhead paging to a VoIP phone system. It registers with your PBX as a SIP extension and auto-answers, so a page goes straight to the speaker. A built-in 6.5 W amplifier can drive a speaker on its own, and a line output feeds a larger PA amplifier when you need more coverage.
Relay contacts on the PA1+ can be triggered over SIP or DTMF, which is useful for opening a gate or door strike. A second Gigabit port passes the network through to another device. It runs on PoE. The speaker isn't included.
Specifications
| Connects to | Your PBX as a SIP extension; a speaker or PA amplifier |
|---|---|
| Power | PoE 802.3af Class 3, or optional 5 V adapter (not included) |
| Amplifier | 6.5 W class D, 8 Ohm speaker terminal |
| Line out | 600 Ohm, to an external PA amplifier |
| Network | 2x Gigabit Ethernet (pass-through) |
| Relay | Contacts controlled over SIP or DTMF, wire set included |
| Other I/O | 3.5mm mic in and line out |
| Codecs | G.711, G.722, G.729, Opus and others |
| Mounting | Wall or ceiling, indoor |
| Dimensions | 6.5" x 4.1" x 1.4" (165 x 104 x 35 mm) |
| Manufacturer part # | 00004603 |
| UPC | 811819013897 |
Good to know
- Registers with your phone system as a standard SIP extension, so it works with most on-premise and hosted PBXs.
- No speaker in the box. Connect your own 8 Ohm speaker, or use the line out into an existing PA amplifier.
- If you don't have PoE, the PA1+ uses the Snom 10W power supply (sold separately).
What's in the box
- Snom PA1+
- Wall mount plate and screws
- Wire set
- Quick installation guide
Frequently asked questions
Does the Snom PA1+ include a speaker?
No. Snom's datasheet notes the loudspeaker isn't included. The PA1+ drives an external speaker from its 6.5 W amplifier, or feeds a larger PA system from its line out.
How is the PA1+ powered?
The PA1+ runs on PoE (802.3af Class 3). If PoE isn't available, it uses a 5 V Snom power adapter, sold separately.
Warranty and support
Snom products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
