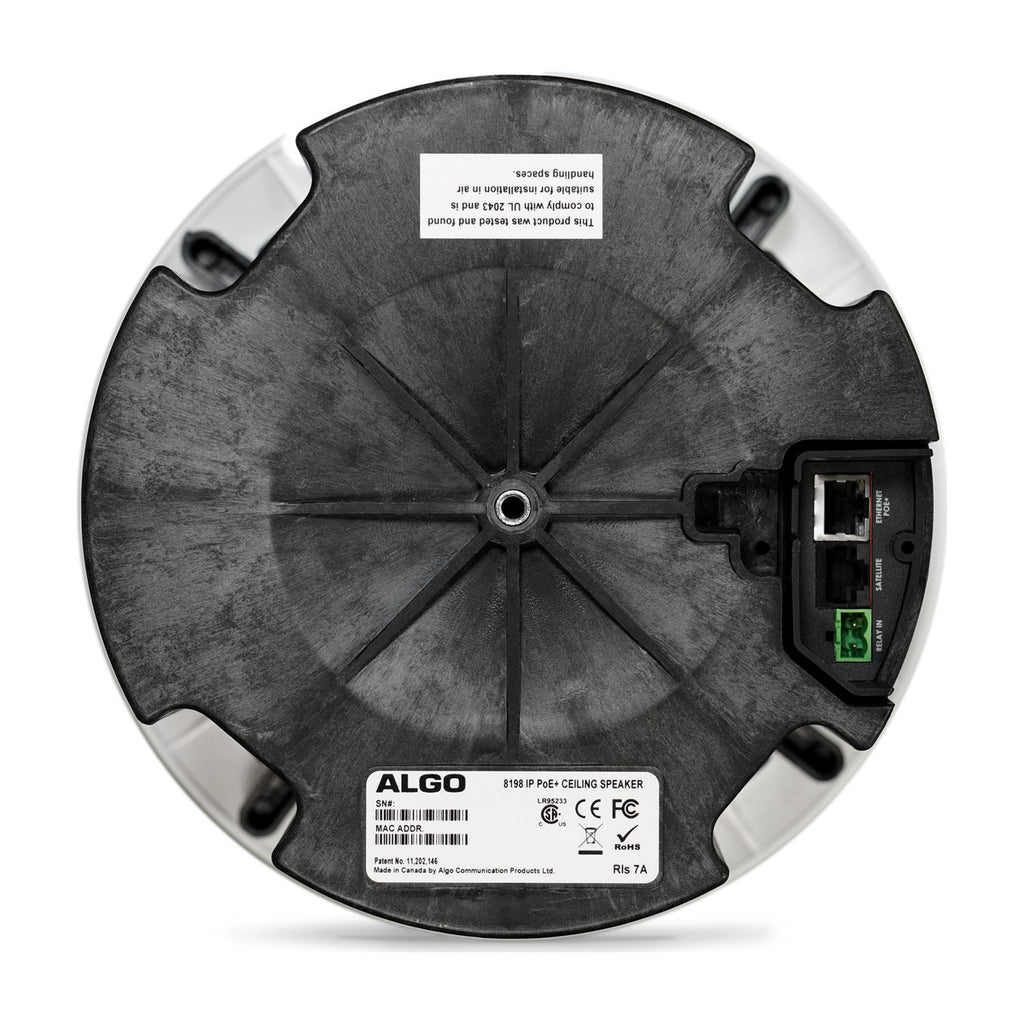

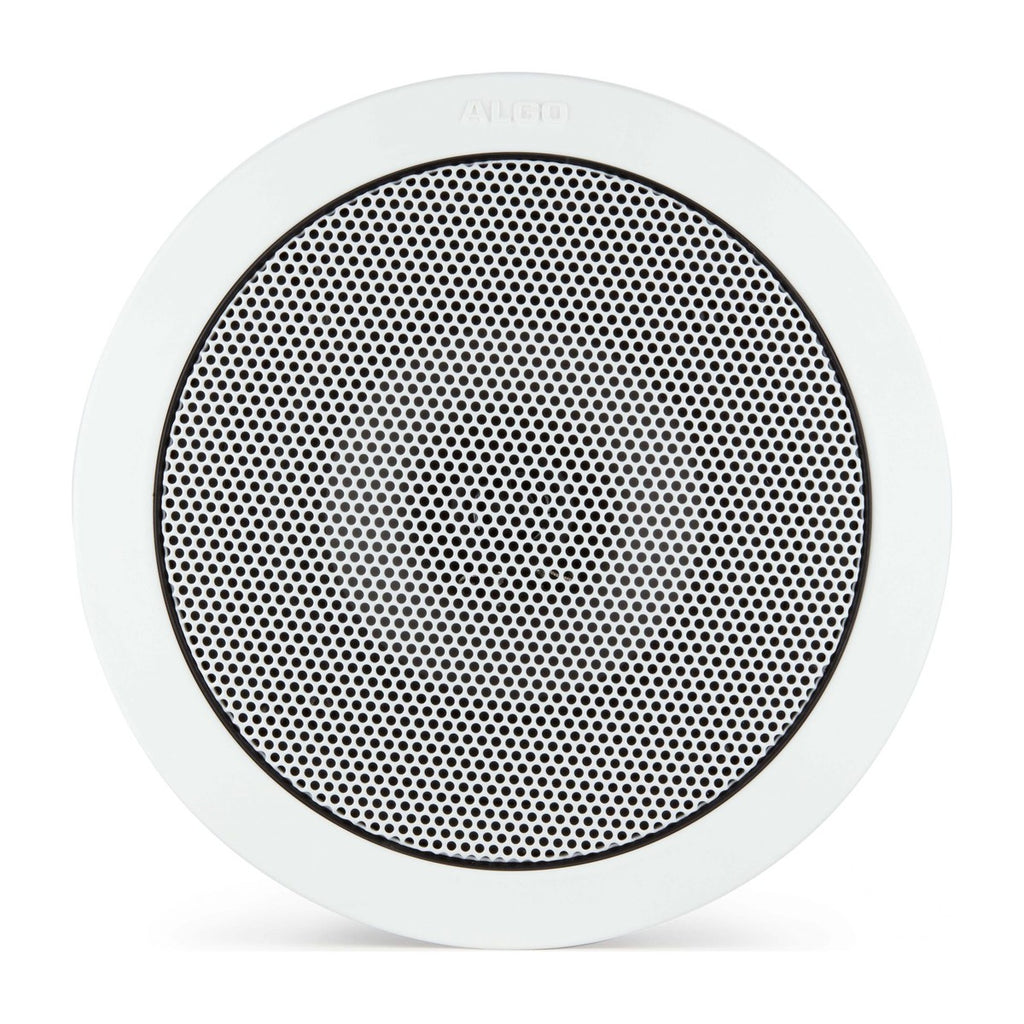

Algo 8198 PoE+ SIP Ceiling Speaker
$645.00
Skip to product information
Algo 8198 PoE+ SIP Ceiling Speaker
$645.00
The Algo 8198 is a SIP ceiling speaker built to cover a larger space from one network drop. It runs on PoE+ (802.3at), registers with your PBX as one SIP extension, and has ports for up to three Algo 1198 satellite speakers connected with ordinary patch cables.
That saves cable runs and switch ports in a big open office, cafeteria or retail floor. Algo certifies it for air handling spaces. For a single room on a standard PoE port, the Algo 8188 is the simpler choice.
Specifications
| Connects to | Your PBX as a SIP extension, or a multicast paging group |
|---|---|
| Power | PoE+ 802.3at Type 2 Class 0, 25.5 W max. Needs a PoE+ port |
| Loudness | 100 dB SPL at 1 m (16 W, alone on PoE+) |
| Audio power | 16 W, shared with up to three 1198 satellites |
| Satellites | Up to three Algo 1198 over Cat patch cable, 50 ft max between speakers |
| Microphone | Yes, for talkback and ambient noise monitoring |
| Mounting | Blind mounts into an 8" hole, 5.5" clearance. Certified for air handling spaces |
| Environment | Dry indoor, 32 to 104 F |
| Manufacturer part # | 8198 |
| UPC | 628123910374 |
Good to know
- Registers with your phone system as a standard SIP extension, so it works with most on-premise and hosted PBXs.
- A standard 802.3af PoE port isn't enough for this one. Use an 802.3at (PoE+) switch port or injector.
- The 1198 satellite speakers are sold separately.
Warranty and support
Algo products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
