Algo 8201 SIP PoE Intercom
Algo 8201 SIP PoE Intercom

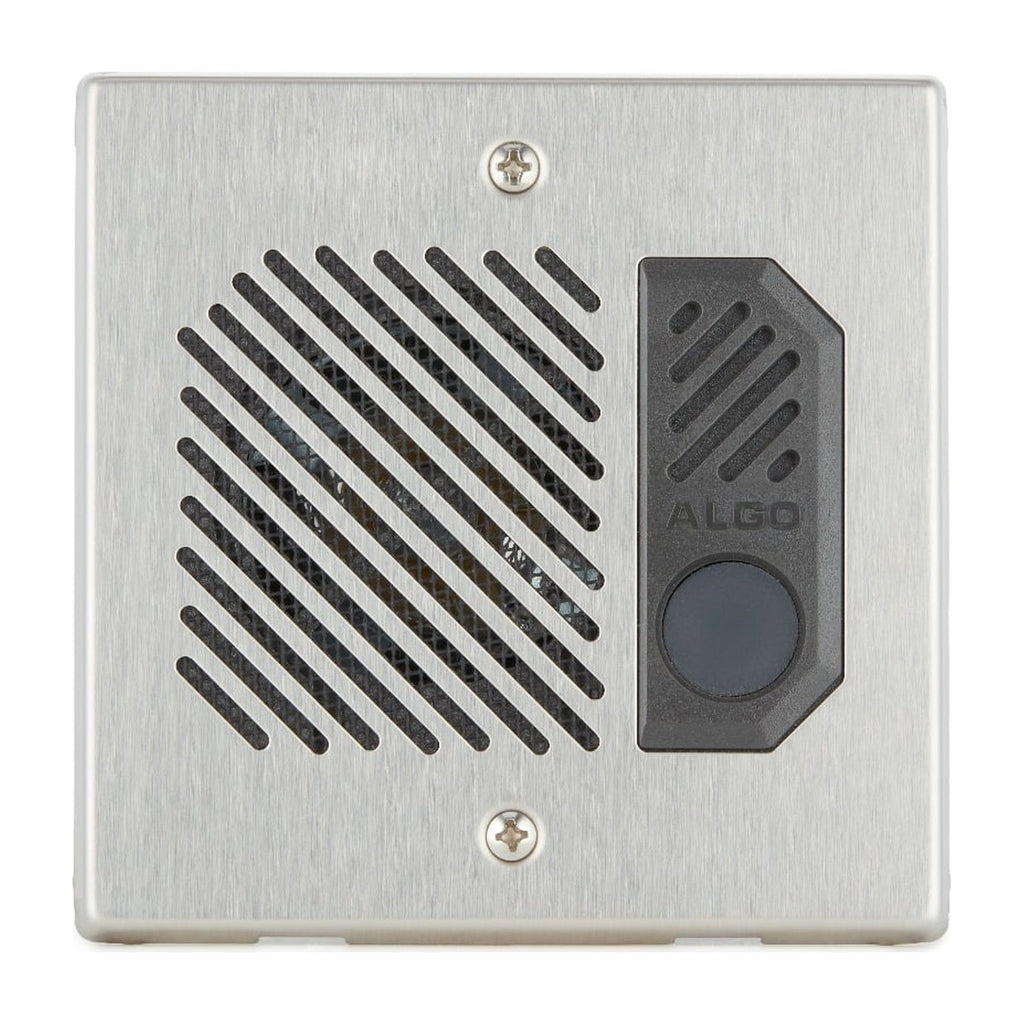

The Algo 8201 is a compact SIP intercom for a front door, gate, lobby or interior access point. A visitor presses the backlit call button, and it calls an extension or ring group on your phone system for a hands-free conversation.
It runs on standard PoE and is rated for outdoor use. It mounts on the included surface bracket or flush in a double-gang box. A relay contact can be triggered from the phone keypad, but it's rated 30 V 50 mA, so plan on a separate relay or door controller to drive an electric strike. If you want the door strike handled for you, the Algo 8028 doorphone kit includes a controller with a 1 A relay.
Specifications
| Connects to | Your PBX as a SIP extension |
|---|---|
| Power | PoE 802.3af Class 0, 6 W max |
| SIP extensions | 1 intercom extension |
| Call button | Backlit tactile silicone |
| Door relay | Dry contact, 30 V 50 mA max, keypad activated |
| Door sensor input | Dry contact (NO or NC) |
| Weather rating | Outdoor rated, -40 to 122 F (gaskets may be required) |
| Mounting | Surface bracket included, or flush in a double-gang box |
| Dimensions | 4.5" x 4.5" x 1.65" |
| Manufacturer part # | 8201 |
| UPC | 628123910077 |
Good to know
- Registers with your phone system as a standard SIP extension, so it works with most on-premise and hosted PBXs.
- No camera. This is an audio intercom.
- Algo makes a vandal-proof version, the 8203, for exposed locations.
What's in the box
- Algo 8201 intercom
- Surface mount bracket
Warranty and support
Algo products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
