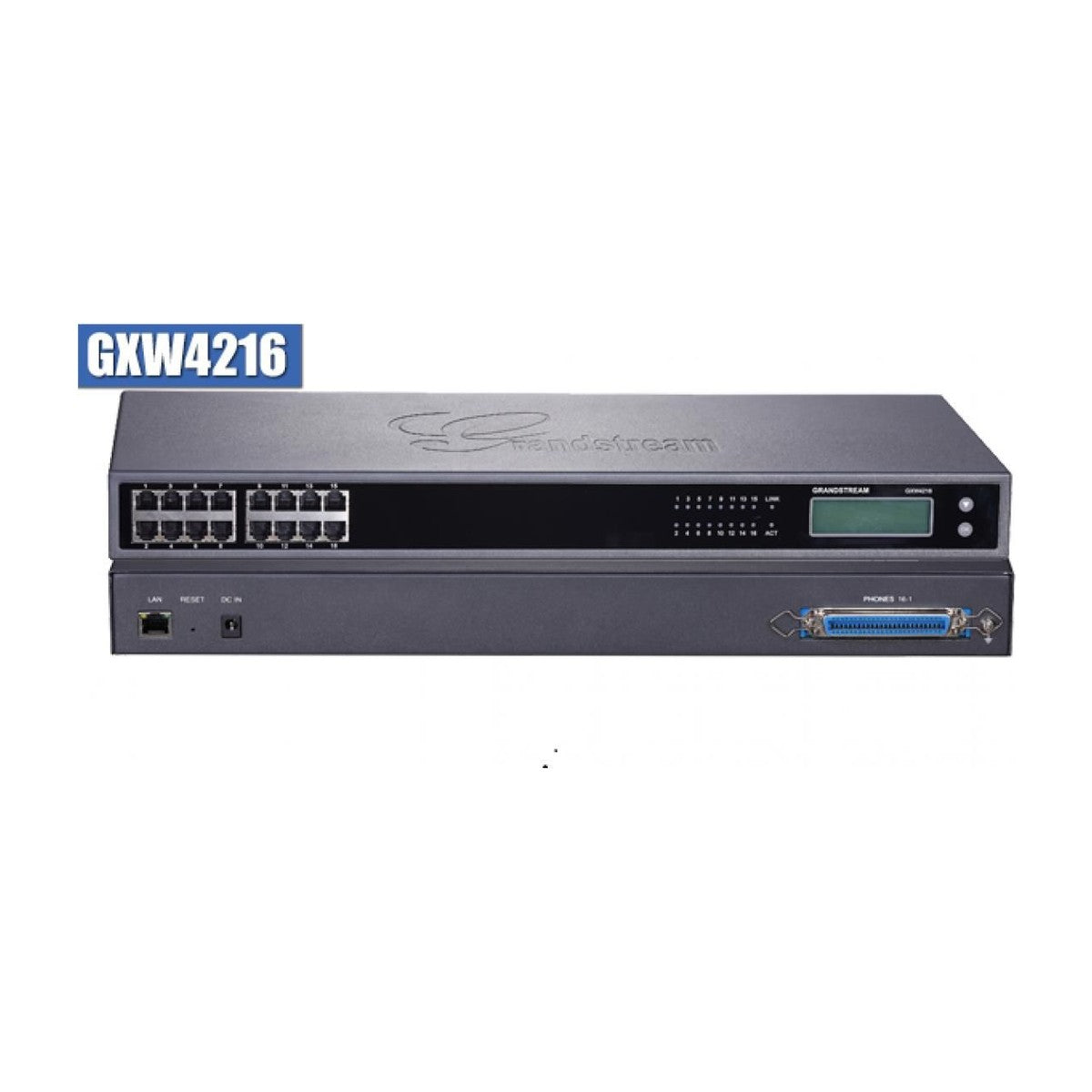

Grandstream GXW4216 V2 16-Port FXS Gateway
Grandstream GXW4216 V2 16-Port FXS Gateway
The Grandstream GXW4216 V2 is a 1U FXS gateway with 16 analog ports. It's built for sites with a lot of existing analog phones, like a school, hotel or factory, that want to keep the phones and the wiring while the phone system moves to VoIP.
Each port gets its own SIP account. You can wire it with individual RJ11 cables or through the 50-pin Telco connector to a punch-down block, and Grandstream rates the ports for runs up to 6,000 ft.
Quick guide to the two port types: an FXS port provides dial tone, so you plug in an analog phone, fax machine, door phone or overhead paging amplifier. An FXO port takes dial tone, so you plug in an analog phone line from the phone company. Our Crosstalk PBX appliances are pure VoIP with no analog ports, so an ATA or gateway is how you bring analog devices or phone lines onto the system.
Specifications
| Phone ports | 16x FXS (RJ11) plus 1x 50-pin Telco connector |
|---|---|
| Phone line ports (FXO) | None |
| Network | 1x 10/100/1000Mbps Ethernet |
| SIP | 4 SIP server profiles, independent SIP account per port |
| Ring load | 2 REN, up to 6,000 ft on 24 AWG |
| Display | Backlit 132 x 32 LCD |
| Fax | T.38 fax relay up to 14.4kbps, falls back to G.711 pass-through |
| Codecs | G.711, G.722 (HD), G.723.1, G.726-32, G.729, iLBC, Opus |
| Security | SRTP, TLS, HTTPS, secure boot, random default admin password |
| Management | Web, SSH, TR-069, GDMS |
| Power | 12V/5A universal power supply, 60W max |
| Form factor | 1U, desktop or rack mount with front brackets, 440 x 185 x 44 mm |
| Weight | 2.4 kg |
| Operating temperature | 32-104°F (0-40°C) |
| Manufacturer part # | GXW4216-V2 |
| UPC | 6947273704409 |
Good to know
- FXS only. For analog phone lines from the phone company, use an FXO gateway like the HT881.
- One Gigabit network port, no second port for pass-through.
- Fax over VoIP works best when your SIP provider supports T.38. Test your fax machine on the line before you rely on it.
- Need more ports? The GXW4224 V2 has 24.
Frequently asked questions
How many analog phones can the GXW4216 V2 connect?
Sixteen. Each FXS port has its own SIP account, so each phone is its own extension.
Can I use a punch-down block with the GXW4216 V2?
Yes. Along with 16 RJ11 ports, it has a 50-pin Telco connector for cabling to a punch-down block.
Warranty and support
Grandstream products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
