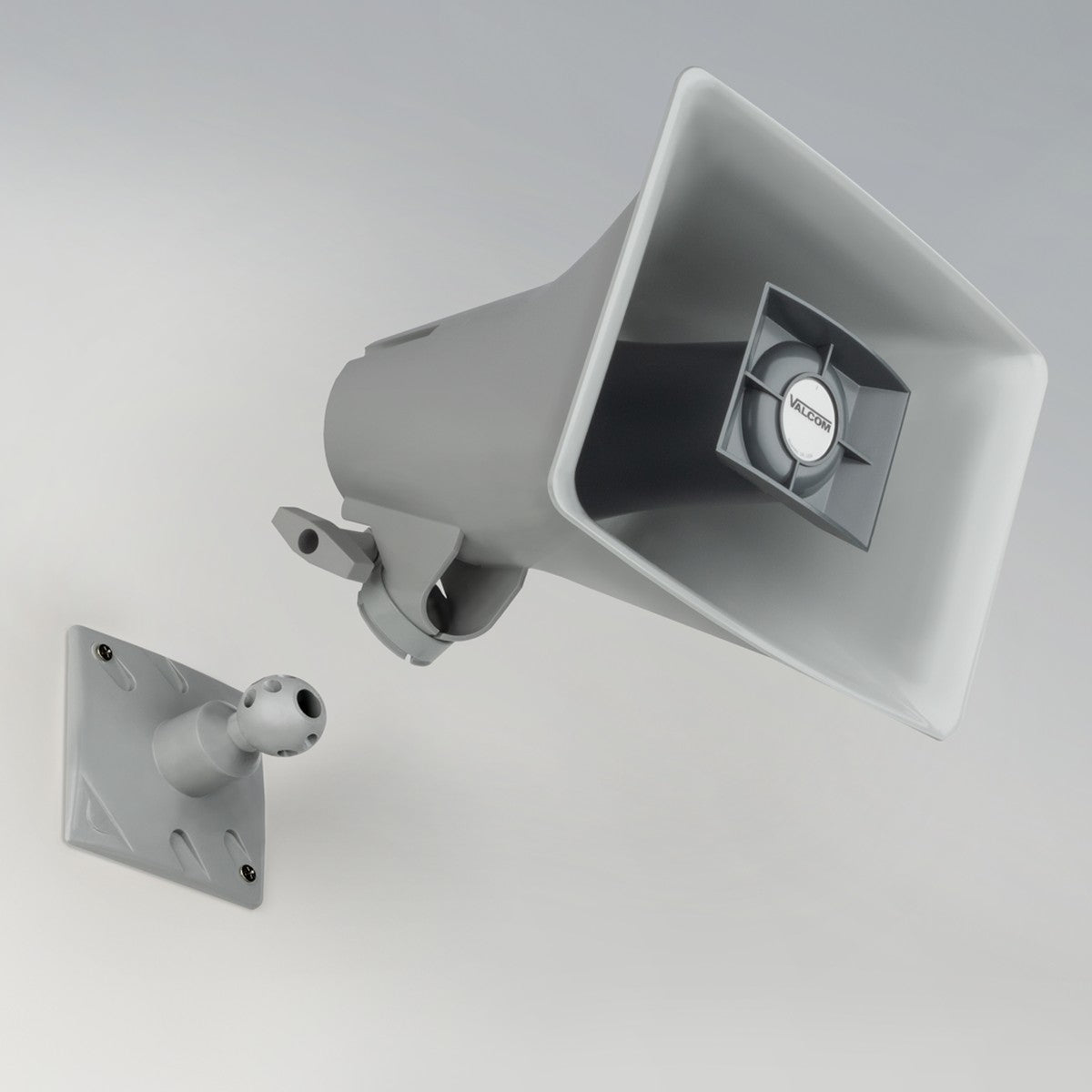

Valcom V-1030C-GY 5-Watt Paging Horn (Gray)
Valcom V-1030C-GY 5-Watt Paging Horn (Gray)
The Valcom V-1030C-GY is a 5-watt self-amplified paging horn for warehouses, shops, parking lots and other loud spaces, indoors or out. It has its own amplifier and volume control, so it takes a line-level paging signal and runs on Valcom's -24 V power.
This is an analog speaker, not a network device. It doesn't connect to your network or register with the phone system on its own. It connects to a Valcom paging interface like the V-9972, and it needs a 24 V supply such as the VP-2124D. If you want a horn that plugs straight into a PoE switch, look at the Algo 8186.
Specifications
| Type | Analog, self-amplified, one-way |
|---|---|
| Amplifier | Built-in 5 W RMS with volume control |
| Input | 600 Ohm |
| Power | -24 VDC, 300 mA |
| Loudness | 116 dB at 4 ft (-10 dBm input, 1 kHz) |
| Frequency response | 225 Hz to 14 kHz |
| Dispersion | 120 x 90 degrees |
| Environment | Indoor or outdoor, -4 to 131 F |
| Mounting | Omni-Lock base, 360 x 160 degree aim, wall or electrical box; I-beam clamp included |
| Dimensions | 7.38" x 10" x 10.4" |
| Manufacturer part # | V-1030C-GY |
| UPC | 799111001449 |
Good to know
- Each horn draws 300 mA at 24 V. Add up the speakers on a run when you size the power supply.
- This listing is the gray model. Valcom also makes beige (V-1030C) and marine white (V-1030M).
What's in the box
- V-1030C-GY horn
- Omni-Lock mounting base
- I-beam clamp
Warranty and support
Valcom products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
