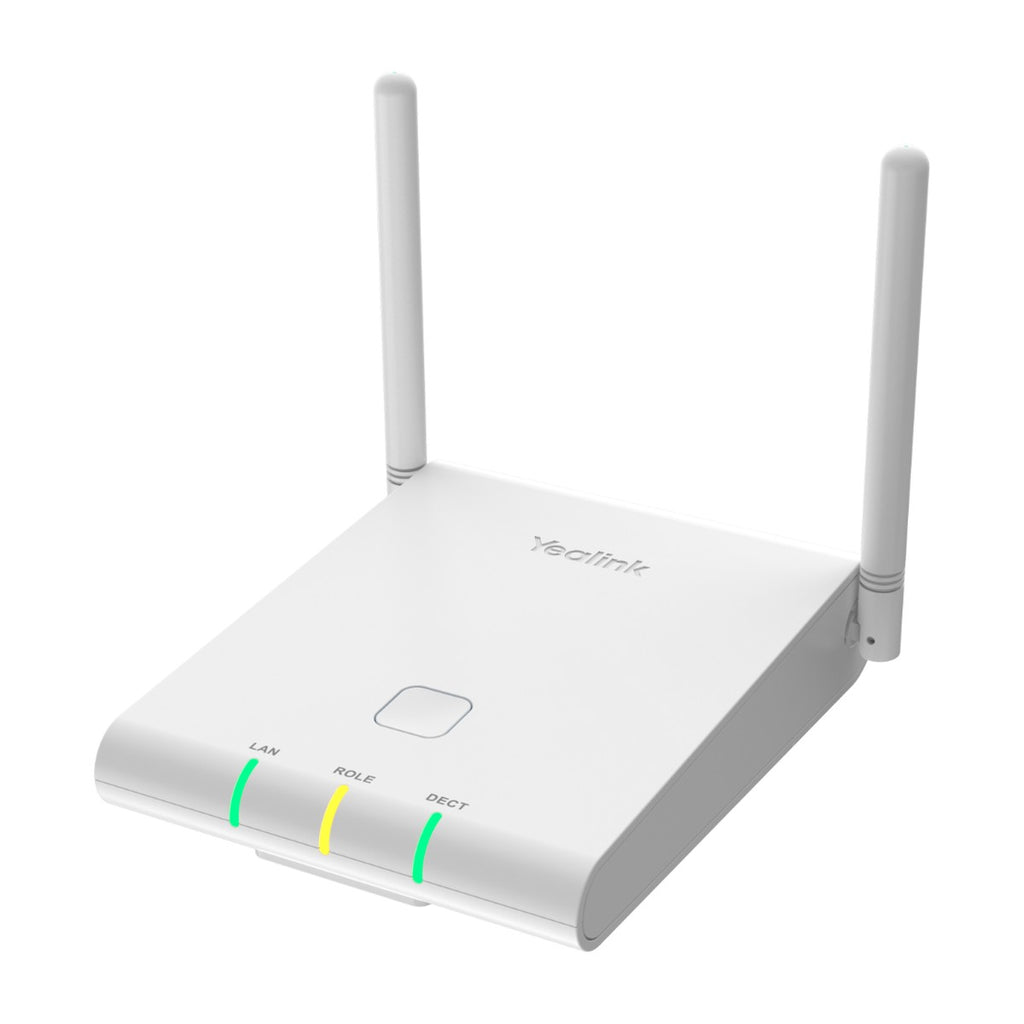

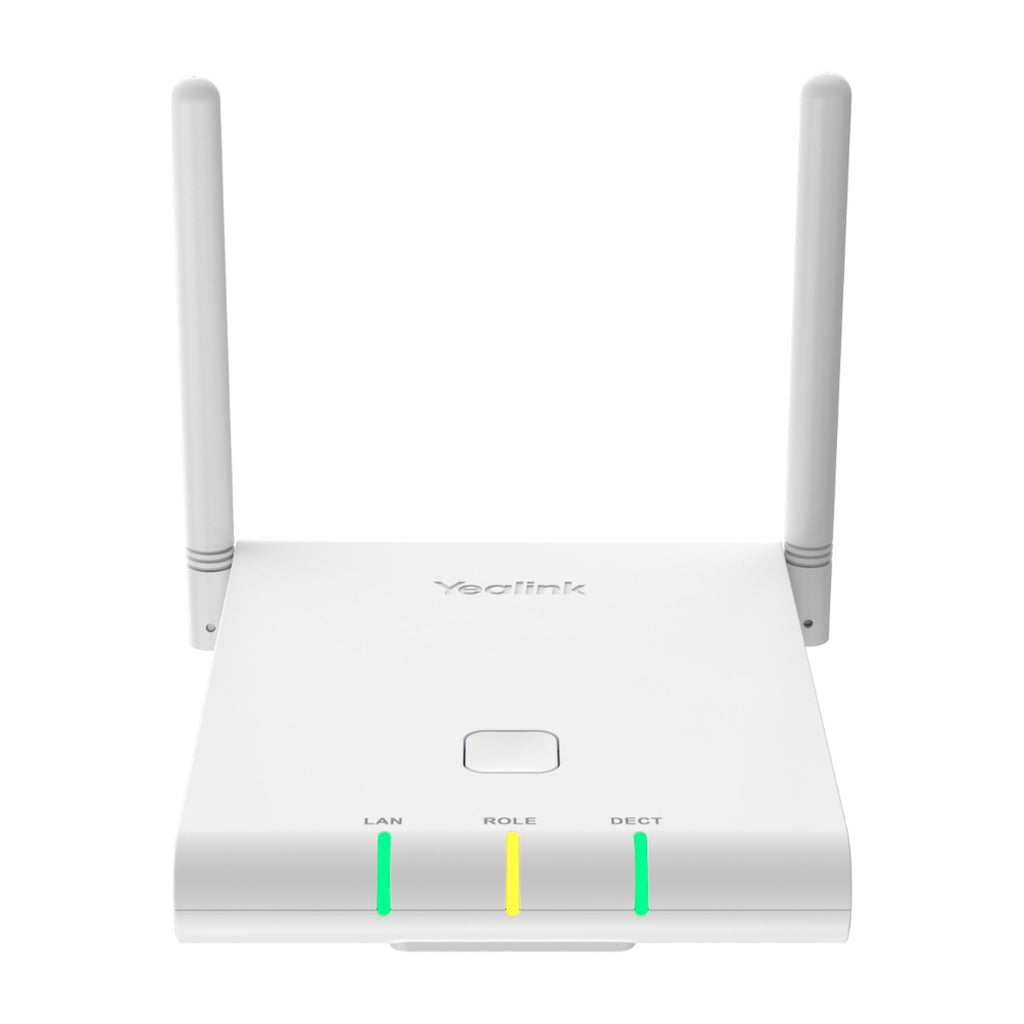

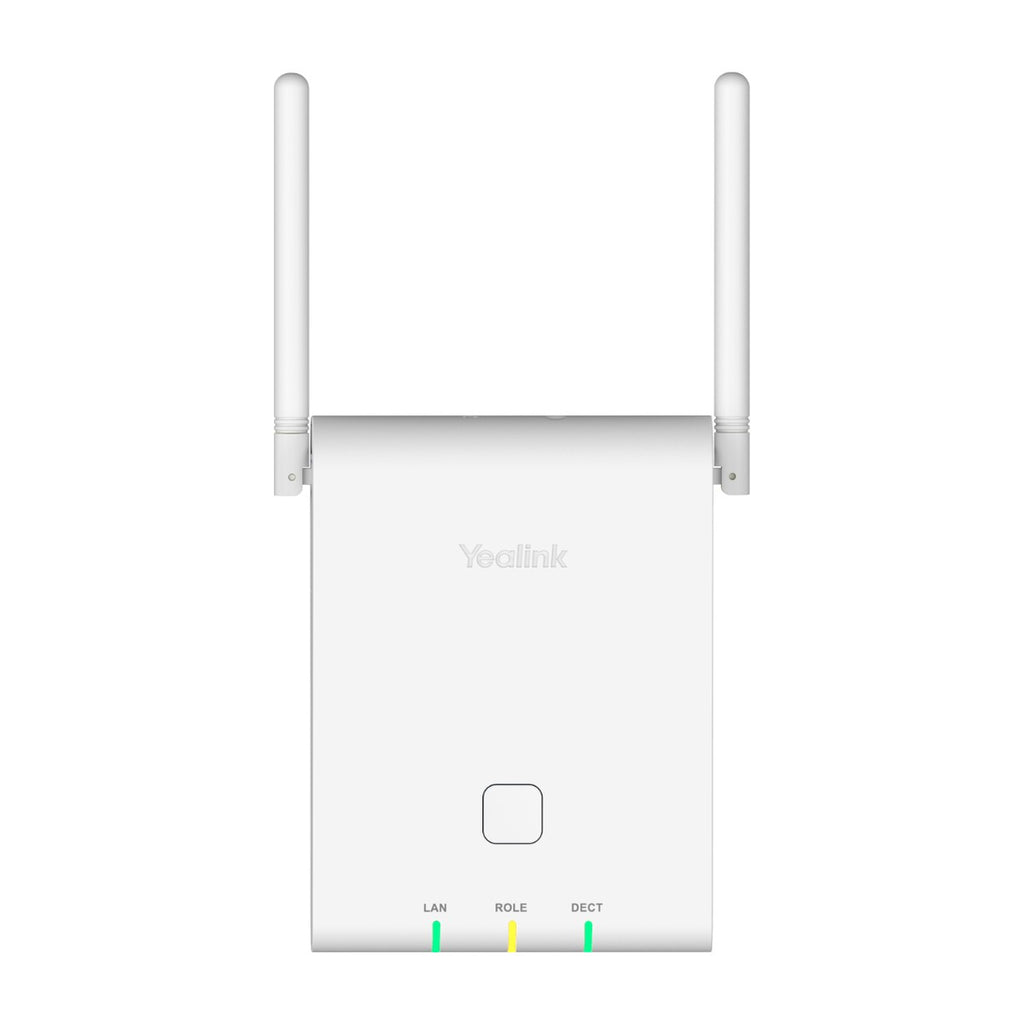

Yealink W90B Multicell DECT Base Station
Yealink W90B Multicell DECT Base Station
The Yealink W90B is the base station for Yealink's largest DECT system, the W90. It adds rotatable external antennas for more reach per base and LAN synchronization, which keeps roaming stable in places where bases can't hear each other well, like warehouses full of racking. A W90 system is one W90DM DECT Manager plus up to 60 W90B bases, for up to 250 handsets and 250 simultaneous calls. With Yealink's Virtual Integrator Manager license it scales to 10 managers, 600 bases and 2,500 handsets.
Every W90 system needs a W90DM DECT Manager. For up to 30 bases and 100 handsets, the W80 system (W80B and W80DM) costs less.
Specifications
| System size | Up to 60 bases, 250 handsets, 250 calls per W90DM |
|---|---|
| Calls per base | Up to 8 |
| Sync | Over the air and over the LAN |
| Antennas | External, rotatable |
| Range per base | 30-50 m indoor, up to 300 m outdoor |
| Power | PoE 802.3af Class 1 |
| Size | 134 x 100 x 28 mm |
| Works with | Yealink W53H, W56H, W59R, W73H, W78H, W57R, CP930W, CP935W, DD Phone |
| Manufacturer part # | 1302015 |
| UPC | 6938818306196 |
Good to know
- Needs a W90DM DECT Manager.
- Yealink lists the power adapter as optional, so plan on PoE.
- Indoor only. Yealink rates it for 0 to 40 C.
- Yealink DECT only works with Yealink DECT. It won't pair with another brand's handsets or bases.
What's in the box
- W90B base station
- Expansion screws
- Quick Start Guide
Frequently asked questions
What's the difference between the Yealink W80 and W90?
The W80 handles up to 30 bases and 100 handsets. The W90 handles up to 60 bases and 250 handsets per DECT Manager, adds external antennas and LAN sync, and scales further with a license.
Warranty and support
Yealink DECT products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
