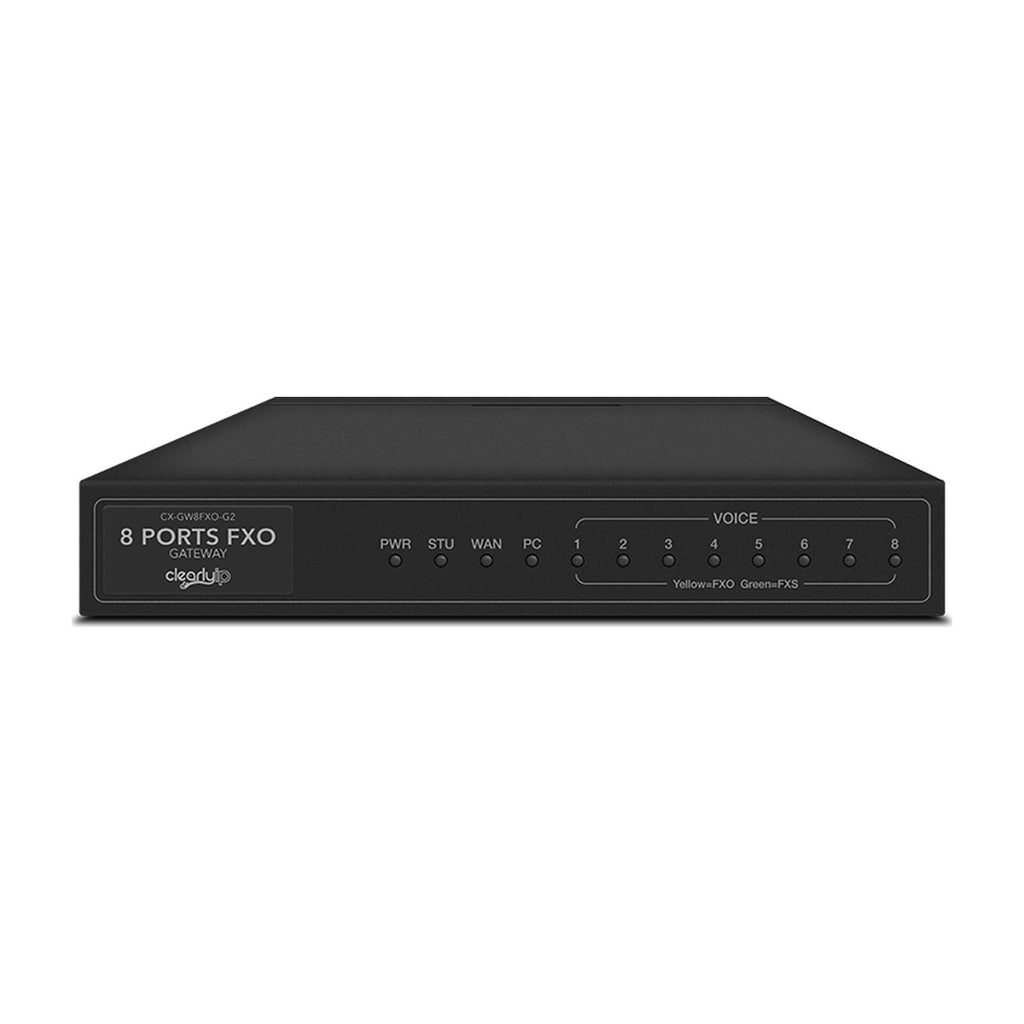

ClearlyIP 8-Port FXO G2 Analog Gateway
ClearlyIP 8-Port FXO G2 Analog Gateway
The ClearlyIP 8 Port FXO G2 connects up to eight analog phone lines from the phone company to your VoIP phone system. It's how you keep existing copper lines working on a SIP PBX, with up to eight calls at once.
ClearlyIP builds the hardware in our Crosstalk PBX appliances, and its gateways are tested with FreePBX. They manage through a web GUI or ClearlyIP's ComXchange Gateway Provisioning Module.
Quick guide to the two port types: an FXS port provides dial tone, so you plug in an analog phone, fax machine, door phone or overhead paging amplifier. An FXO port takes dial tone, so you plug in an analog phone line from the phone company. Our Crosstalk PBX appliances are pure VoIP with no analog ports, so an ATA or gateway is how you bring analog devices or phone lines onto the system.
Specifications
| Phone ports (FXS) | None |
|---|---|
| Phone line ports (FXO) | 8x FXO |
| Concurrent calls | 8 |
| Network | 1x WAN + 1x PC, 10/100/1000Mbps |
| Fax | T.38 or G.711 pass-through, up to 33,600 bps |
| Codecs | G.711, G.722, G.722.2, G.729a |
| Security | TLS, SRTP, brute-force login protection, firewall, SIP IP allow list |
| VPN client | OpenVPN, L2TP |
| Protection | Class I lightning protection |
| Power | 12V/1.5A, 12W |
| Dimensions | 228 x 135.5 x 35 mm |
| Weight | 0.825 kg |
| Mounting | Desktop |
| Operating temperature | 32-104°F (0-40°C) |
| Manufacturer part # | CX-GW8FXO-G2 |
Good to know
- FXO only. It can't connect analog phones or fax machines. For those, use the ClearlyIP 8 Port FXS or the 4 FXS / 4 FXO gateway.
Frequently asked questions
What does the ClearlyIP 8 Port FXO do?
It connects up to eight analog phone lines from the phone company to a VoIP phone system.
Can I plug analog phones into it?
No. All eight ports are FXO, for phone lines. Analog phones need FXS ports.
Warranty and support
ClearlyIP gateways include a 2-year hardware warranty. The extended warranty option adds 3 years, for 5 years of total coverage. We handle warranty claims with ClearlyIP for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
