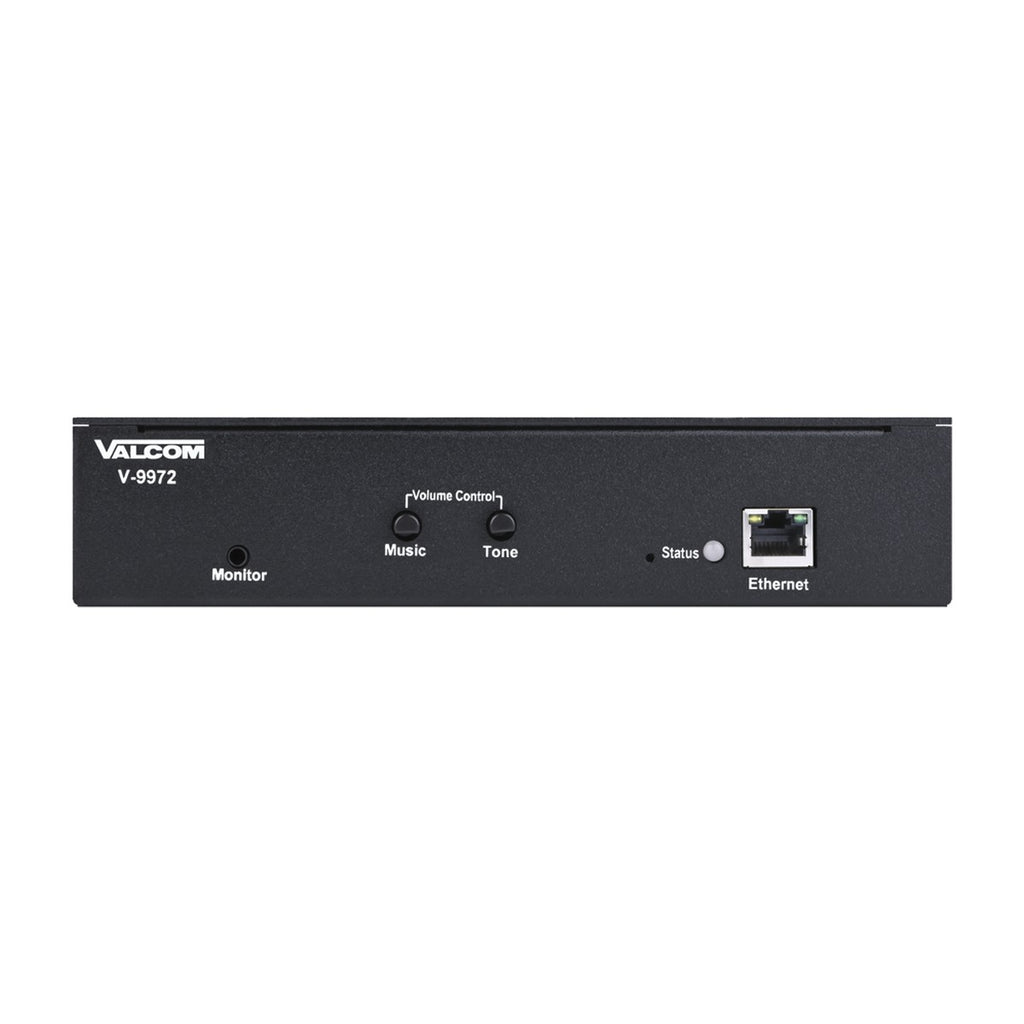

Valcom V-9972 Universal Paging Interface
Valcom V-9972 Universal Paging Interface
The Valcom V-9972 Universal Paging Interface connects a phone system to Valcom paging. It accepts a SIP registration from your PBX, or an analog FXS or FXO line, and sends the page out to Valcom one-way amplified speakers, a Valcom zone controller or talkback page units.
One V-9972 can drive up to 150 Valcom one-way amplified speakers, like the V-1030C horn and V-9022A-2 ceiling speaker. It has a background music input that mutes during pages, a pre-page tone and a feedback eliminator.
It doesn't include a power supply. Valcom recommends the VP-624D, and the speakers need their own 24 V power as well.
Specifications

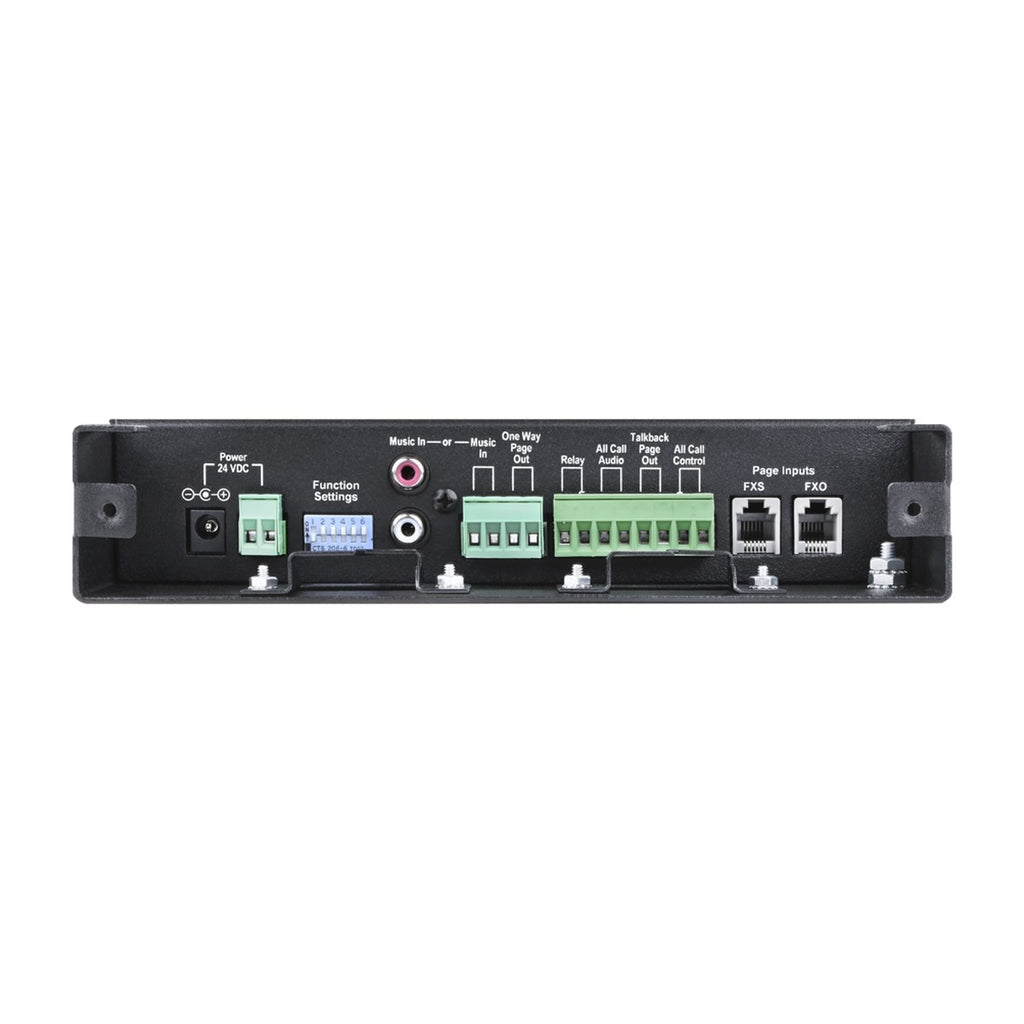

| Connects to | Your PBX as a SIP extension, or an analog FXS or FXO port |
|---|---|
| Page outputs | One-way line level (up to 150 Valcom amplified speakers), talkback page out (FXO, 600 Ohm) |
| SIP | Base unit; the V-9972-2 license adds up to 4 SIP extensions |
| Music input | Yes, mutes during pages |
| Relay | Form A contact, 24 VDC 1 A |
| Power | -24 VDC, 600 mA (VP-624D, not included) |
| Mounting | Wall or 19" rack, brackets included |
| Dimensions | 9.25" x 10.12" x 1.72" |
| Manufacturer part # | V-9972 |
Good to know
- Registers with your phone system as a standard SIP extension, so it works with most on-premise and hosted PBXs.
- No PoE. It needs a 24 VDC supply, sold separately.
- This is the base model. Multiple SIP lines and enhanced Night Ring need the V-9972-2 license.
What's in the box
- Valcom V-9972
- Wall and rack mounting brackets
Warranty and support
Valcom products carry the manufacturer's warranty, and we handle the claim with the distributor for you. Questions before you buy? Email shop@crosstalksolutions.com or call 541-787-8870.
